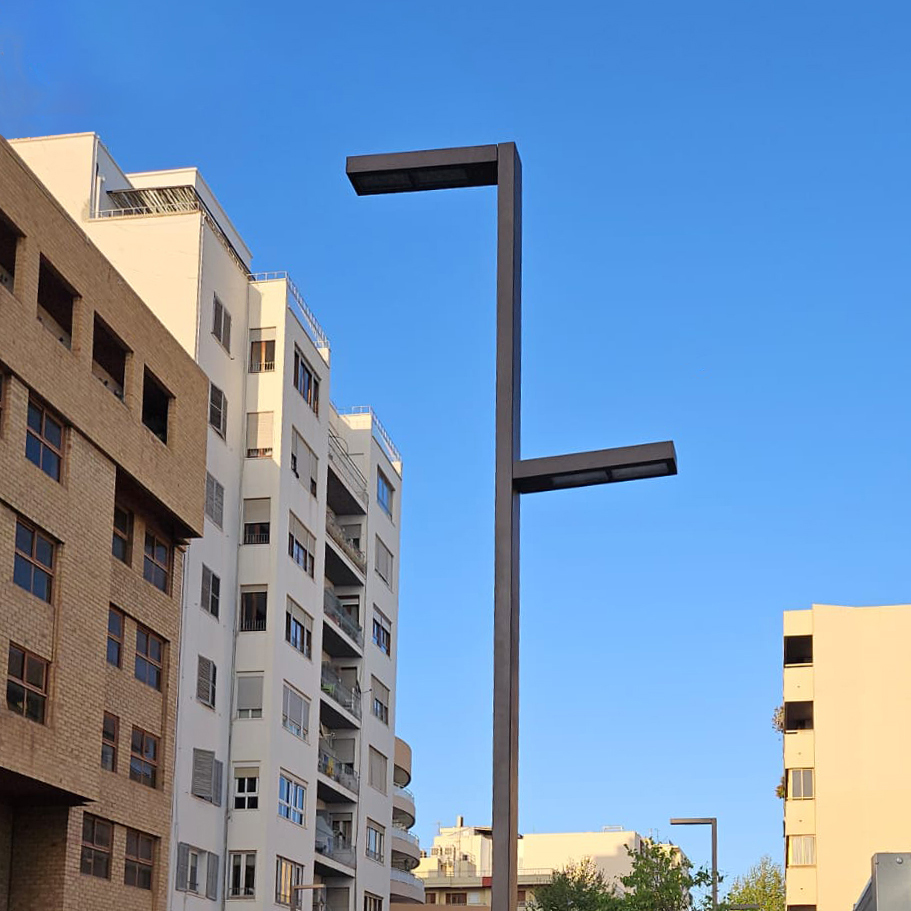

The Flit series is born from the fusion of the different elements of the lighting systems. Pole and arm form the same rectangular section piece. It allows the possibility of placing 2 points of light in different directions and heights.
Electronic efficiency > 90%.
IP66 | IK09
Horizontal mounting on pole with Ø60mm male inlet.
Their specifications are the key
Here we show you the key aspects that allow it to adapt to any project.
Monobloc lenses
Ensure better photometric accuracy
Aluminium
anti-corrosive with a copper content of less than 0.1%.
Painting
The paint complies with EN 12944 C4 High Durability
Reflector
Improves efficiency, uniformity and light intrusion
Locking system
for tool-free maintenance
Threads
stainless steel
Product life
based on the environmental conditions of the project
Valve
pressure compensator. Eliminates interior humidity
Space
independent for electronics
Silicone gasket
Sealing gaskets made of resistant silicone
Guarantee
The product is adapted to the needs of the project
Glass
ultra-transparent. Improves efficiency by up to 10%.
Developments
The luminaire adapts to technological change
Disconnector
of current. Protects the installer
Smartec
Luminaire pre-equipped for Smartec remote control
Circular distribution
Optimises heat dissipation
Telescopic rod
Risk-free maintenance
Anti-reflective
Anti-reflection treatment. Improves efficiency by up to 5%.
Some technical details
Composed of a rectangular tube in extruded aluminium AA 6063 T5 with low copper content. Access to the equipment through the front cover, fixed to the body with M6 captive screws and silicone sealing gasket.
- Light point from 4.5 to 12m high.
- Characteristic dimensions: 1200 x 200 x 100 mm.
- Maximum power 130W
- Maximum flux 17169lm.
- AC voltage 220V-240V ~ 50/60Hz.
- Approx. weight: 212 kg (3 luminaires + 8.5 m pole).
- IP66
- IK09
- FHS < 0,1%.
- CRI minimum 70.
- Class I / Class II optional.
- Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).
The solution to take control
Smartec is a scalable solution with which you can quickly and efficiently control and manage the status of your luminaires from any device.
Because public lighting has evolved in parallel with technological and urban development, and we want to offer you the best results to keep you up to date at all times.
Because together and together with Smartec, you will have the complete solution.
Discover all that Smartec can offer you
Optics is everything
Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.
F1M6
F2M2
F2MD
F4M2
F4MC
F4MD
F5M1
